BAC06A series battery charger is specially designed for the generator starting lead-acid battery. It uses the latest switch power components and 2-stages charging method. BAC06A is suitable for the long-term trickle charging(floating charge) of lead-acid battery.
The maximum charging current for 12V charger is 6A, and the maximum charge current for 24V charger is 5A.
FEATURES
1. Switch power structure design; wide range of AC voltage input; small volume, light weight and high efficiency.
2. Use 2-stages charging method: constant current firsty and then constant voltage. Fully follow the charging characteristic of the lead-acid battery, can avoid overcharging and largely extend the battery life.
3. Protection of short circuit and reverse connection.
4. Charging voltage and current can be field adjusted via potentiometer.
5. LED display for AC power indication and charging indication.
6. Easy to install horizontally.

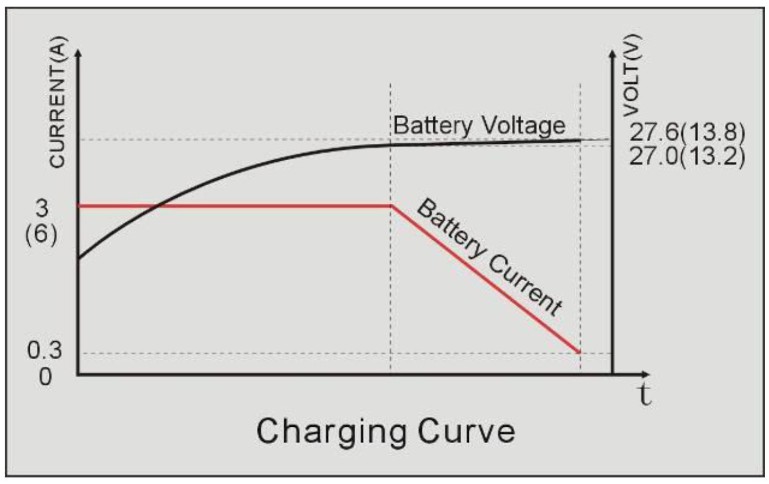

CHARGING PRINCIPLE
