ASKQ series household automatic transfer switch is PC Class non-frequently operable electrical transfer switch.
It has 3 working modes:Automatic, Electric(external control) and Emergency Manual.
ASKQ is suitable to be used in the 50/60Hz low voltage AC power distribution systems for the reliable transfer between two power supplies.
FEATURES
• Reasonalbe structure, compact volume, beautiful appearance.
• Adopt excitation type electromagnet drive mechanism, which is extrmely fast in transferring.
• The 6A-63A switch is suitable for home use, which meets the requiremnets of the level-3 power distribution system.
• Mount on standard DIN rail. Quick and easy installation.

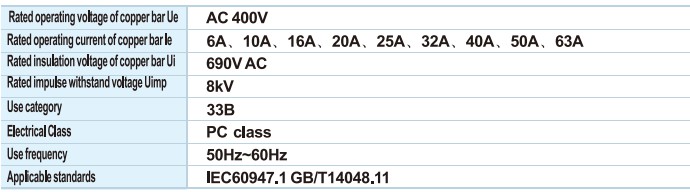

TECHNICAL PARAMETERS
